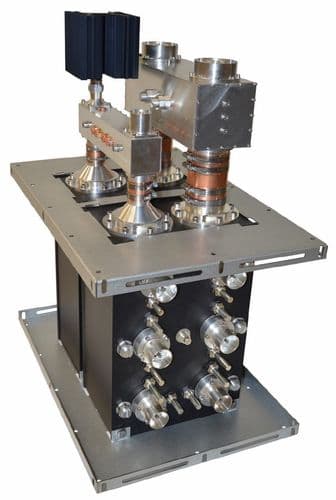

Band IV-V Combiners
Our combiners for the UHF Band fully comply with European and International standards, with spectrum-masks for both critical and non-critical specifications. Combiners are developed to handle adjacent channels. High isolation performance with compact design makes these models easy to position and mount.
They are made from low-loss aluminum and constructed to handle power up to 30 kW digital transmitter. All our standard combiners are convection-cooled, and available with up to 8 Poles filter. These easy to install multi-channel systems have low loss performance, excellent rejection and temperature stability.
Product data sheets
- 40mm Manifold 3 & 4-pole 50W UHF combiner
- 90mm Constant impedance 4-pole 2,3kW UHF combiner
- 90mm Constant impedance 6-pole 2kW UHF combiner
- 90mm Constant Impedance 8-pole 1,7kW UHF combiner
- 140mm Constant Impedance 4-pole 6kW UHF combiner
- 140mm Constant Impedance 4-pole 6kW Low Loss UHF combiner
- 140mm Constant Impedance 6-pole 5kW UHF combiner
- 140mm Constant Impedance 6-pole 6kW Low Loss UHF combiner
- 140mm Constant Impedance 8-pole 4,6kW UHF combiner
- 140mm Constant Impedance 8-pole 5,4kW Low Loss UHF combiner
- 200mm Constant Impedance 4-pole 10kW UHF combiner
- 200mm Constant Impedance 4-pole 10kW Low Loss UHF combiner
- 200mm Constant Impedance 6-pole 8,6kW UHF combiner
- 200mm Constant Impedance 6-pole 10kW Low Loss UHF combiner
- 200mm Constant Impedance 8-pole 7,2kW UHF combiner
- 200mm Constant Impedance 8-pole 10kW Low Loss UHF combiner
- 270mm Constant Impedance 8-pole 16,6kW UHF combiner
