Band II Filters

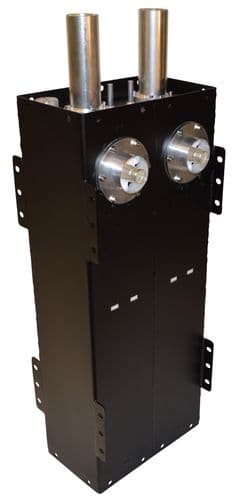

Exir Broadcasting FM filters cover the range from 87.5-108 MHz and have input powers ranging from 100 W up to 59 kW. All of the filters are FM band tunable and convection cooled. The fully adjustable input and output coupling provide superior tuning and performance over the entire FM band.
The bandpass filters use an low-loss aluminum and cooper/ silver plated construction for stable high power performance.
Exir Broadcasting FM filters cover the range from 87.5-108 MHz and have input powers ranging from 100 W up to 59 kW. All of the filters are FM band tunable and convection cooled. The fully adjustable input and output coupling provide superior tuning and performance over the entire FM band.
The bandpass filters use an low-loss aluminum and cooper/ silver plated construction for stable high power performance.
- 70mm 3-pole 75W FM filter
- 70mm 4-pole 75W FM filter
- 60mm 2-pole 1kW FM filter
- 60mm 3-pole 0,7kW FM filter
- 110mm 2-pole 3,5kW FM filter
- 110mm 3-pole 3kw FM filter
- 200mm 2-pole 13kW FM filter
- 200mm 3-pole 10kW FM filter
- 350mm 2-pole 32kW FM filter
- 350mm 3-pole 25kW FM filter
- 530mm 3-pole 59kW FM filter
- FM Low Pass Filter 77mm 5Elements 14kW
- FM Low Pass Filter 150mm 9Elements 105kW
